Pinnacle 28603P
3 Bed
2 Bath
1,600 Sq. Ft.
28' x 60'

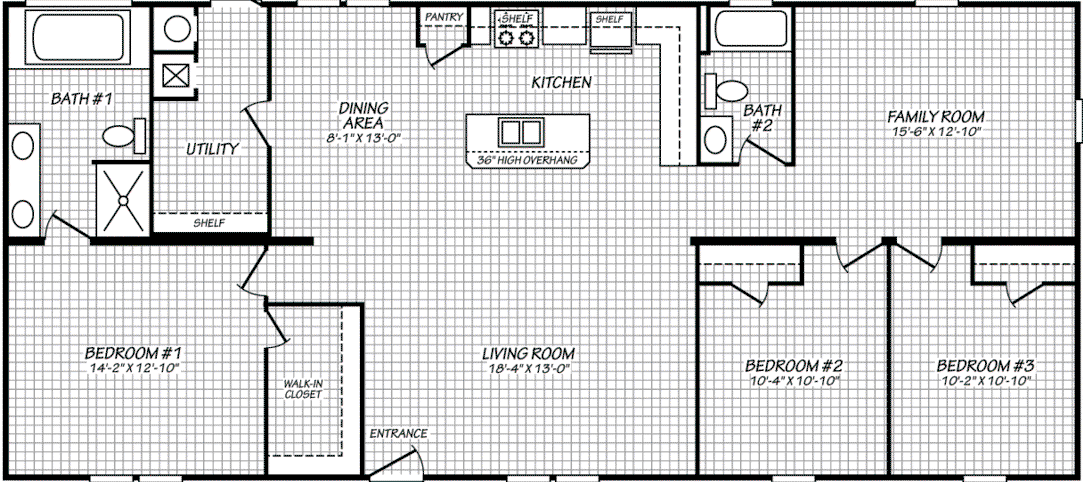

Floor Plan

    Pinnacle 28603p floor plan home features

    Virtual Tour



    Exterior & Construction

    • Texas Manufactured Steel I-Beam Frame
    • Sturdy "C" Channel Cross Members
    • Camber and Reverse-Cambered Engineering
    • 2x8 Floor Joists - 16 / 18 / 32 Wide
    • 2x6 Floor Joists - 28 Wide
    • Triple-Fastened O.S.B. Floor Decking
    • Stud-Mounted Electrical Recepts/Switches
    • Thermal Zone 2
    • R-26 Ceiling / R-11 Walls / R-11 Floors
    • 8' Sidewalls - Flat Ceiling Design T/O
    • 8' Flat Ceiling Design
    • Heat-Reducing Vented Roof Cavity
    • Water Heater Pan with Exterior Drain
    • Low-Maintenance Premium Vinyl Siding
    • 25 Year AR Shingles
    • House Type Front Door w/storm
    • Cottage Rear Door
    • Standard GFCI Recept
    • 20lb Roof Load Construction
    • Vinyl Thermal Pane Windows w/Shutters
    • Keyed-alike Doors (Except Patio Doors)
    • Dead bolts with Cut Resistant Cylinders

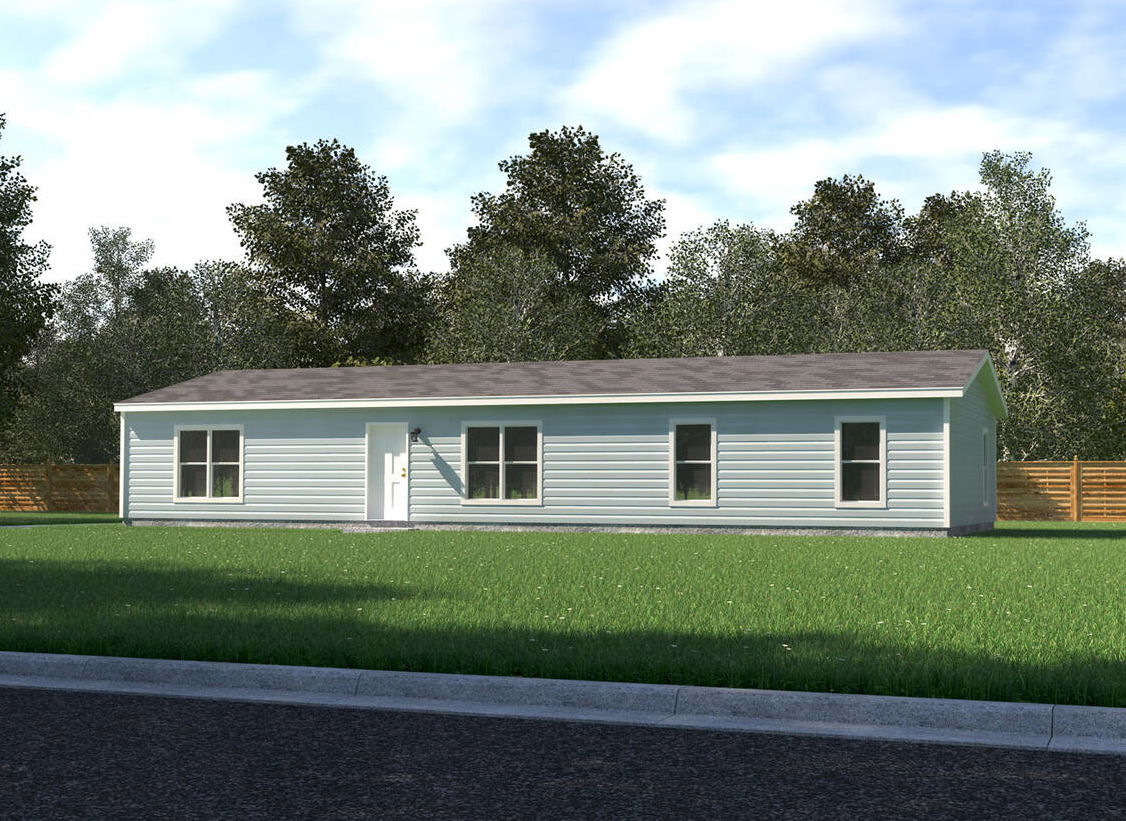

    Pinnacle 28603p hero, elevation, and exterior home features

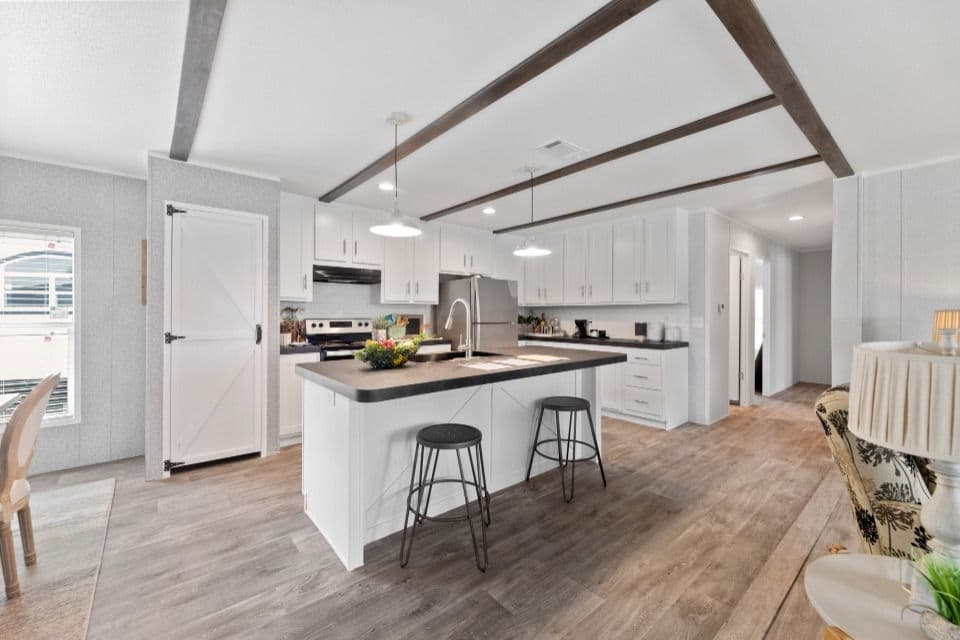

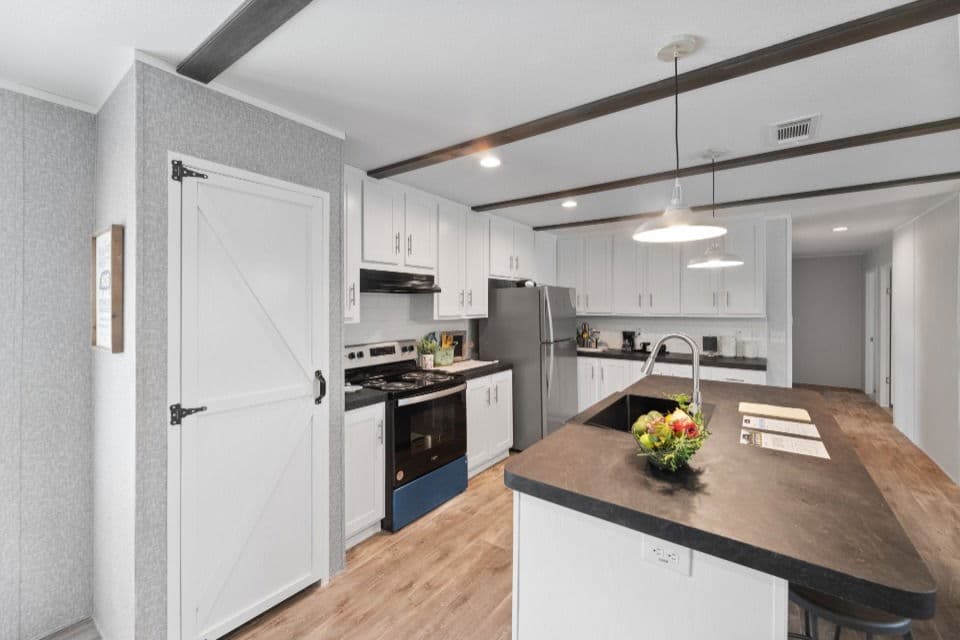

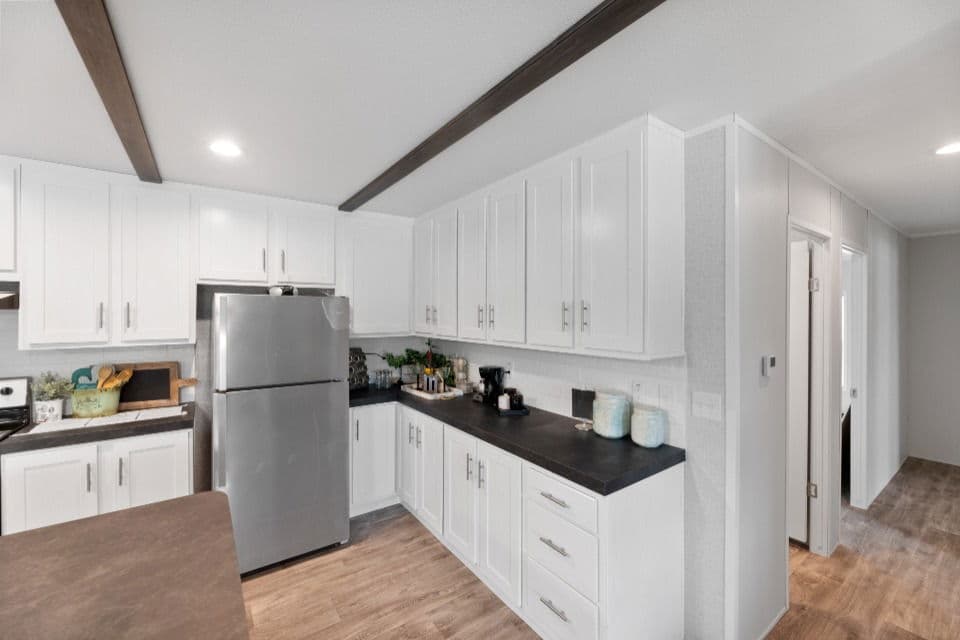

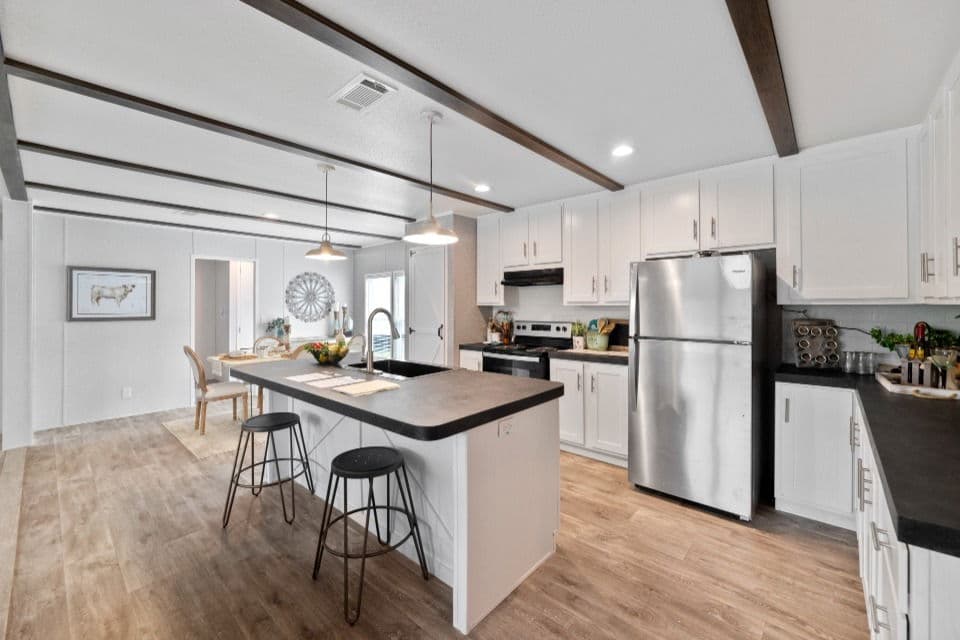

    Kitchen

    • Top Rated Stainless Whirlpool Appliances
    • Electric Range
    • 18 CF Refrigerator
    • Plumbed for Icemaker
    • Dishwasher (select models)
    • Double Bowl Stainless Steel Sink
    • Space Saving Drawer Bank
    • Center Base Cabinet Shelves
    • 42" OH Cabinets W/ Adjustable Shelves
    • Base Cabinet Center Shelves
    • 12" Deep Upper Cabinets
    • Hidden European Style Hinges
    • Wilsonart Brand Laminate Countertops
    • Shaker Style Cabinet Doors

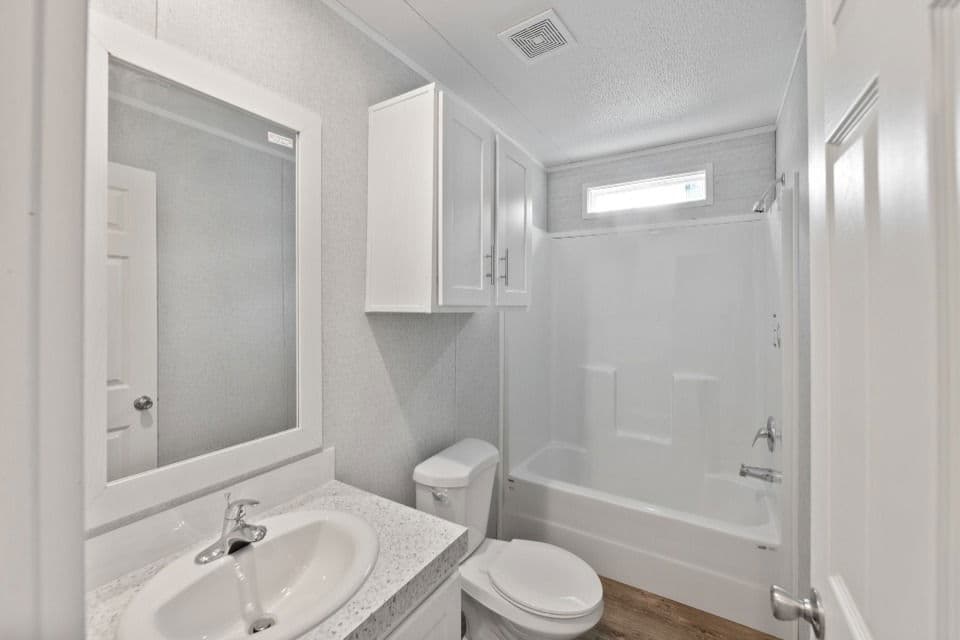

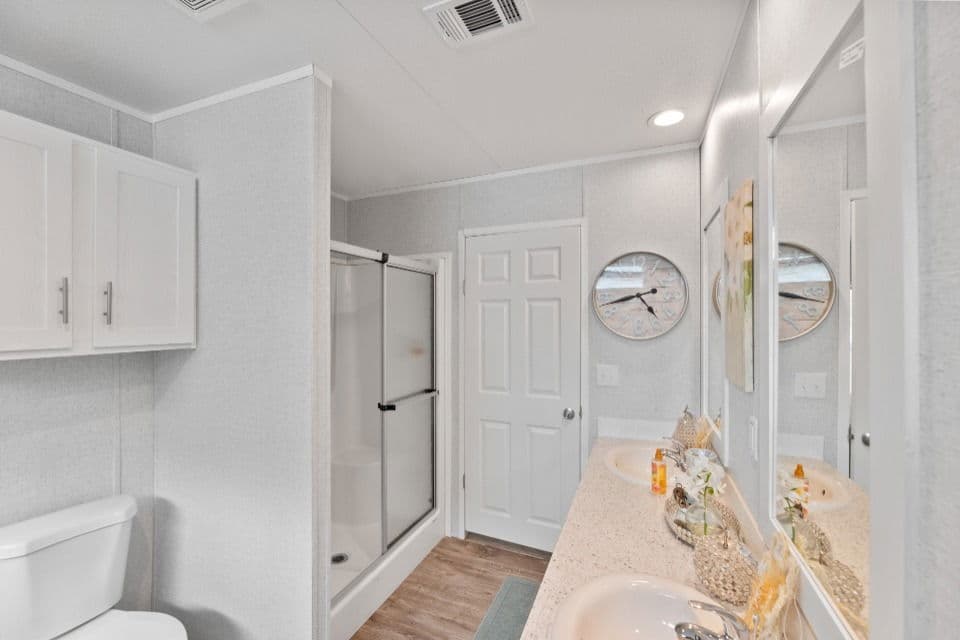

    Bathroom

    • Shut-Off Valves at Sinks and Commodes
    • Wood Trim Mirrors
    • GFCI Recepts in Convenient Locations
    • Water Saver Commodes
    • Powerful Exhaust Fans in All Baths
    • Bath Friendly Vinyl Flooring

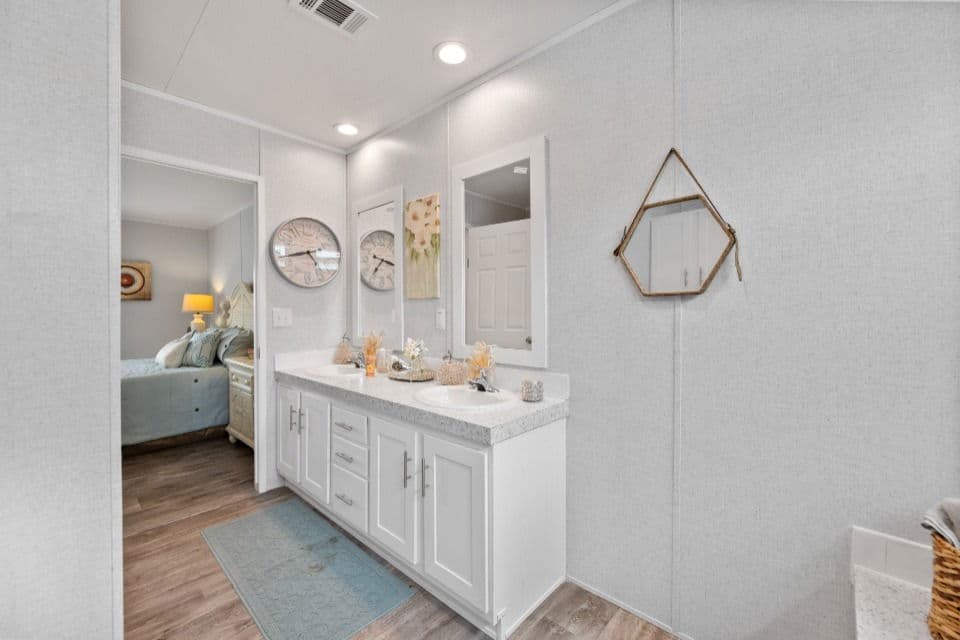

    • China Sinks Both Baths (Dual Sinks Master Bath)
    • 54" Fiberglass Tub/Shower in Guest Bathroom

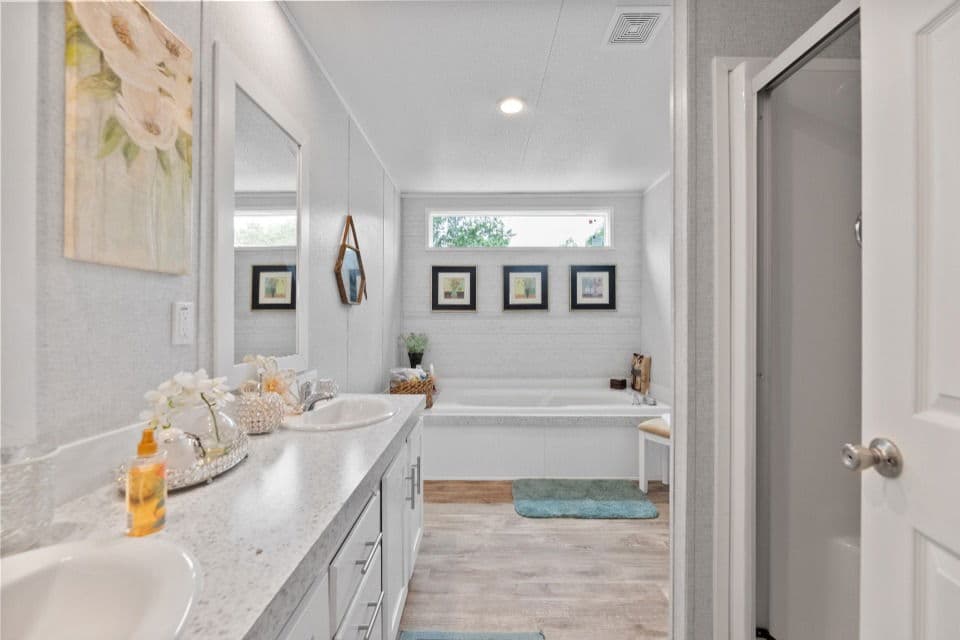

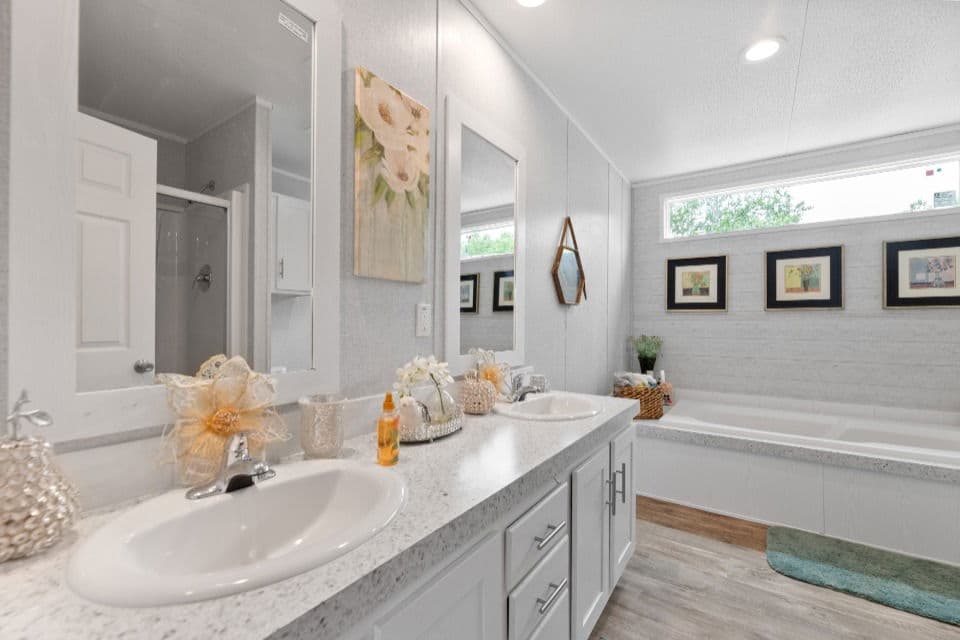

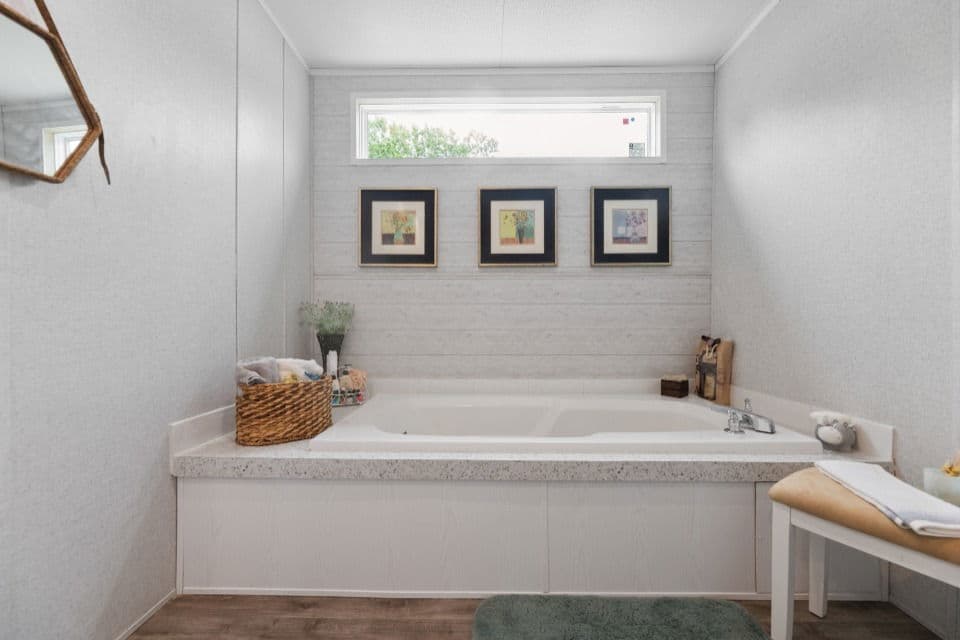

    • Glamour Bath in Master Bath w/Fiberglass Deck Tub & Shower

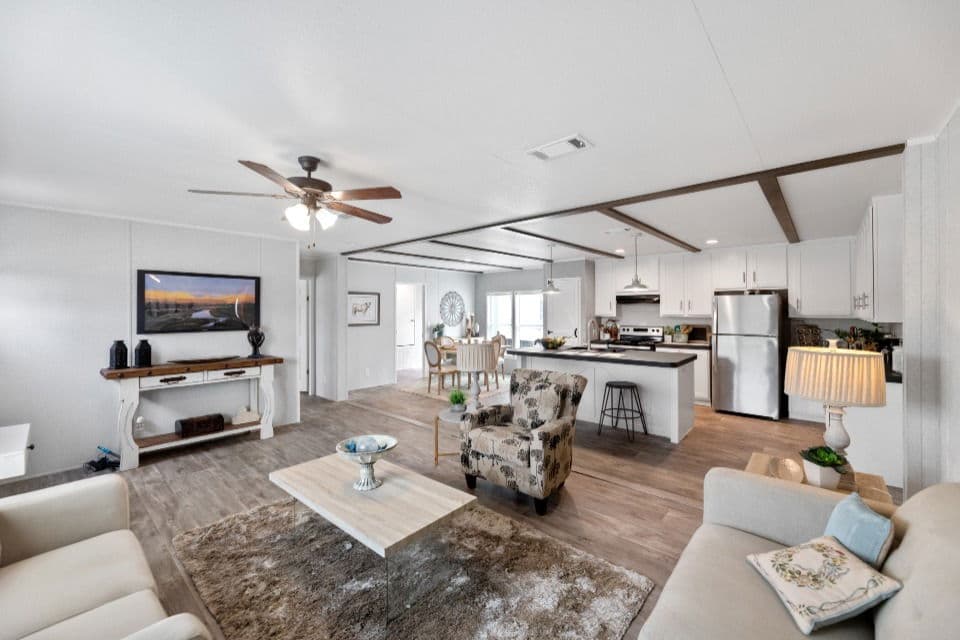

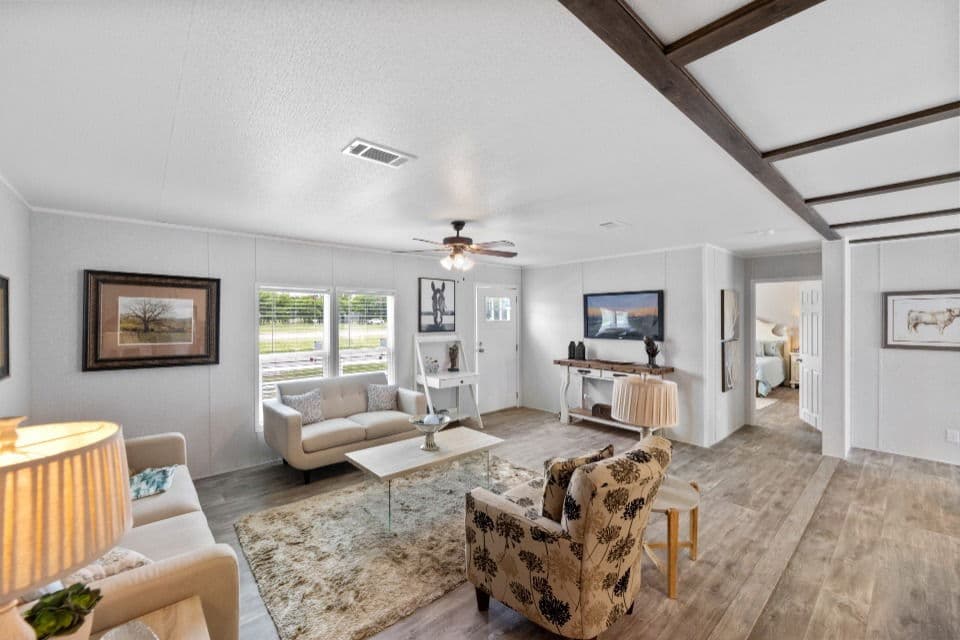

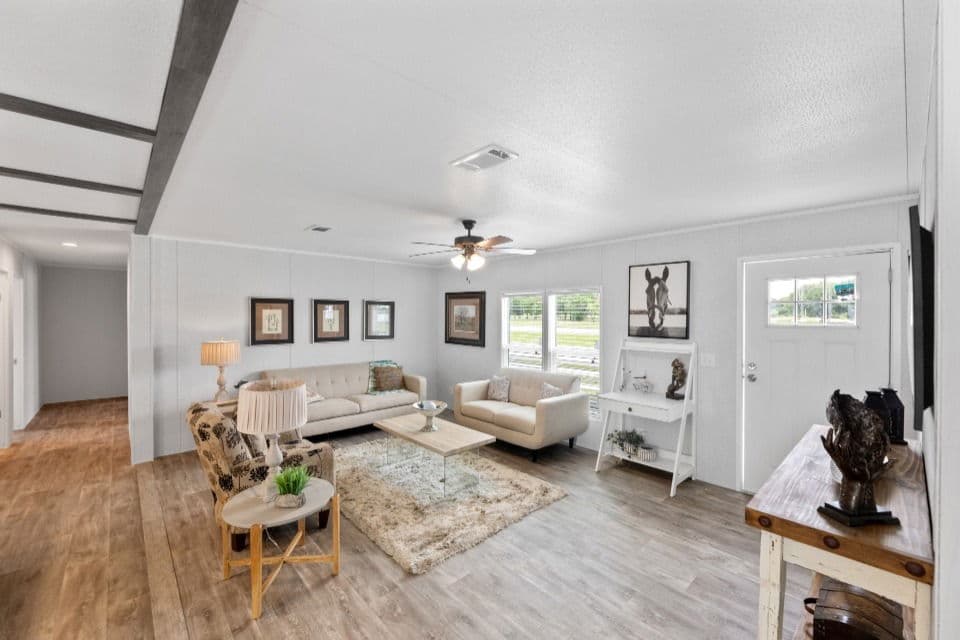

    Interior

    • LED Can Lights T/O
    • Programmable Thermostat
    • 6-Panel Interior Doors w/ Heavy Hinges
    • Floor Mounted Door Stops
    • Damp-Resistant Vinyl-Covered Sheetrock Walls
    • Decorative Wall Panels

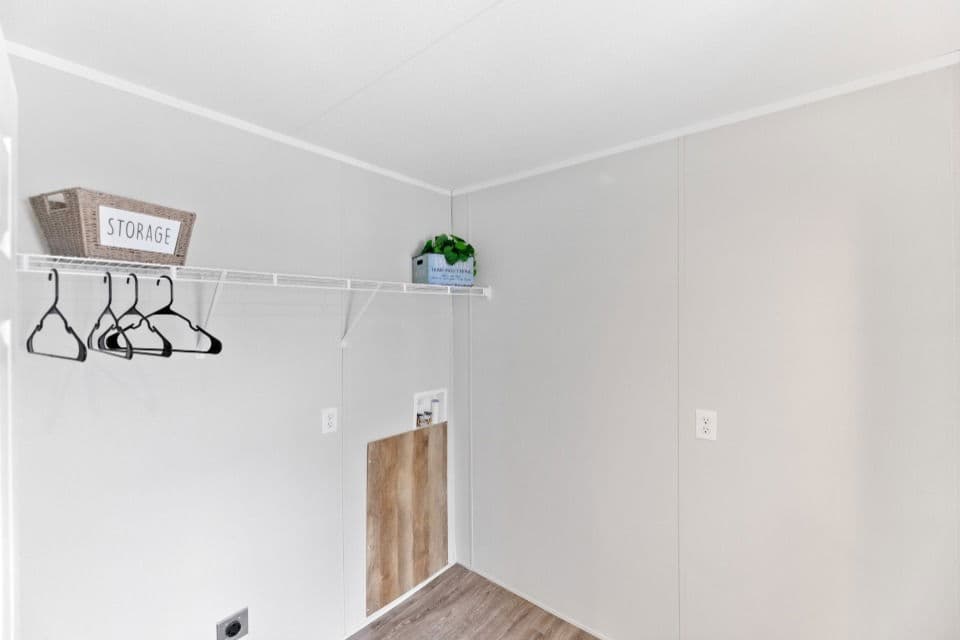

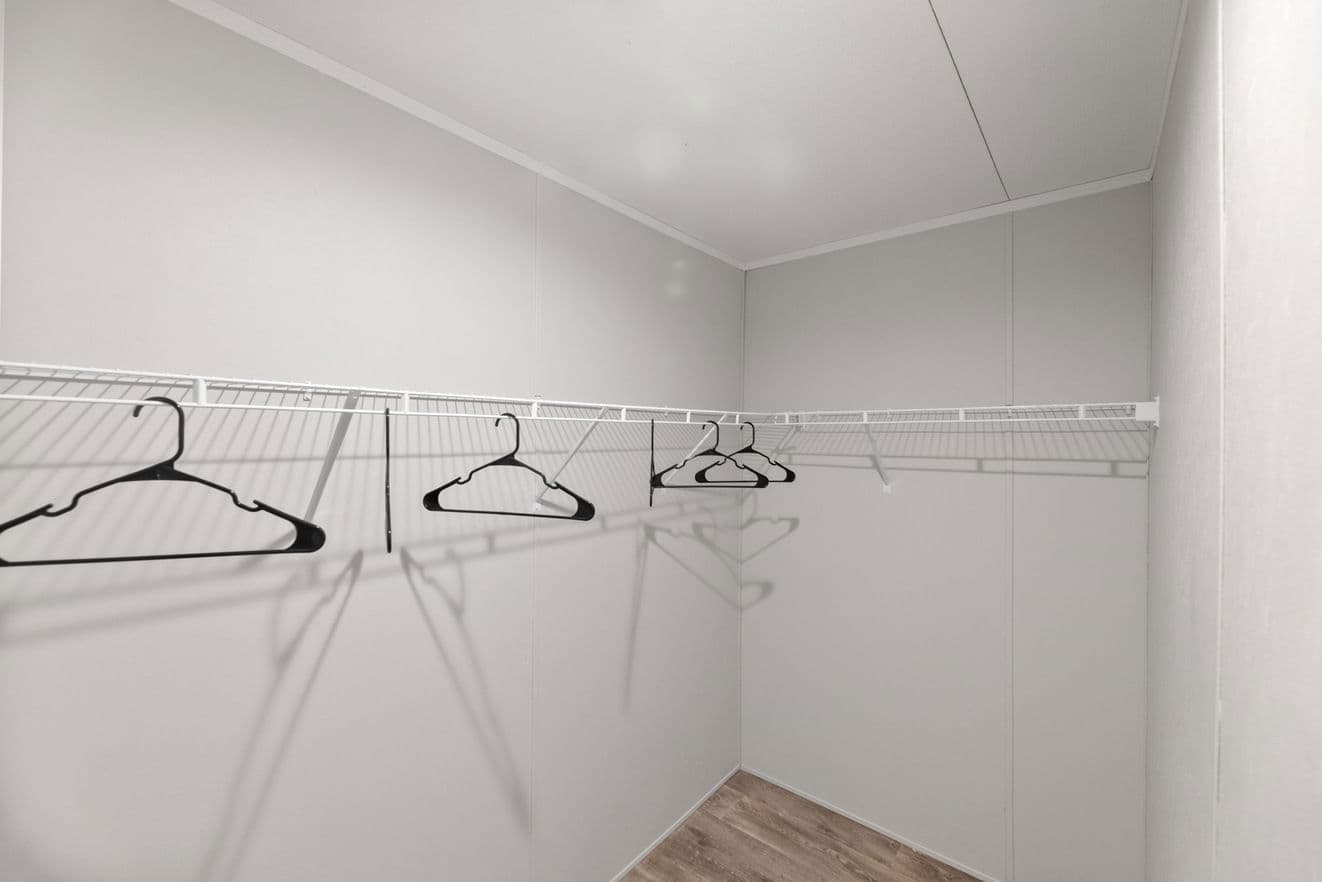

    • Vinyl Coated Wire Utility Shelf
    • 2" Cordless Blinds T/O
    • Beauflor Vinyl Flooring T/O
    • Soft Close Hinges - All Cabinet Doors
    • Whole House Water Shut Off Valve
    • Utility Room Door

    View similar homes

    Vivid 28603n floor plan home features
    Vivid 28603n hero and kitchen home features

    Vivid 28603N

    3 Bed | 2 Bath | 1,600 Sq. Ft. | 28' x 60'

    Landmark 28603l floor plan home features
    Landmark 28603l hero, elevation, and exterior home features

    Landmark 28603L

    3 Bed | 2 Bath | 1,600 Sq. Ft. | 28' x 60'

    Pure homes 28603u floor plan home features
    Pure homes 28603u hero, elevation, and exterior home features

    Pure Homes 28603U

    3 Bed | 2 Bath | 1,600 Sq. Ft. | 28' x 60'

    Pinnacle 32523p floor plan home features
    Pinnacle 32523p hero, elevation, and exterior home features

    Pinnacle 32523P

    3 Bed | 2 Bath | 1,560 Sq. Ft. | 32' x 52'



    Images of homes are solely for illustrative purposes and should not be relied upon. Images may not accurately represent the actual condition of a home as constructed, and may contain options which are not standard on all homes.

    Pinnacle 28603P

    3 bedrooms (sleeps 3-6)

    2 full bathrooms

    1,600 sq. ft.

    28' x 60'

    Pinnacle Series standard features

    Construction

    • Texas Manufactured Steel I-Beam Frame
    • Sturdy "C" Channel Cross Members
    • Camber and Reverse-Cambered Engineering
    • 2x8 Floor Joists - 16 / 18 / 32 Wide
    • 2x6 Floor Joists - 28 Wide
    • Triple-Fastened O.S.B. Floor Decking
    • Stud-Mounted Electrical Recepts/Switches
    • Thermal Zone 2
    • R-26 Ceiling / R-11 Walls / R-11 Floors
    • 8' Sidewalls - Flat Ceiling Design T/O
    • 8' Flat Ceiling Design
    • Heat-Reducing Vented Roof Cavity
    • Water Heater Pan with Exterior Drain

    Exterior

    • Low-Maintenance Premium Vinyl Siding
    • 25 Year AR Shingles
    • House Type Front Door w/storm
    • Cottage Rear Door
    • Standard GFCI Recept
    • 20lb Roof Load Construction
    • Vinyl Thermal Pane Windows w/Shutters
    • Keyed-alike Doors (Except Patio Doors)
    • Dead bolts with Cut Resistant Cylinders

    Interior

    • LED Can Lights T/O
    • Programmable Thermostat
    • 6-Panel Interior Doors w/ Heavy Hinges
    • Floor Mounted Door Stops
    • Damp-Resistant Vinyl-Covered Sheetrock Walls
    • Decorative Wall Panels
    • Vinyl Coated Wire Utility Shelf
    • 2" Cordless Blinds T/O
    • Beauflor Vinyl Flooring T/O
    • Soft Close Hinges - All Cabinet Doors
    • Whole House Water Shut Off Valve
    • Utility Room Door

    Bathroom

    • Shut-Off Valves at Sinks and Commodes
    • Wood Trim Mirrors
    • GFCI Recepts in Convenient Locations
    • Water Saver Commodes
    • Powerful Exhaust Fans in All Baths
    • Bath Friendly Vinyl Flooring
    • China Sinks Both Baths (Dual Sinks Master Bath)
    • 54" Fiberglass Tub/Shower in Guest Bathroom
    • Glamour Bath in Master Bath w/Fiberglass Deck Tub & Shower

    Kitchen

    • Top Rated Stainless Whirlpool Appliances
    • Electric Range
    • 18 CF Refrigerator
    • Plumbed for Icemaker
    • Dishwasher (select models)
    • Double Bowl Stainless Steel Sink
    • Space Saving Drawer Bank
    • Center Base Cabinet Shelves
    • 42" OH Cabinets W/ Adjustable Shelves
    • Base Cabinet Center Shelves
    • 12" Deep Upper Cabinets
    • Hidden European Style Hinges
    • Wilsonart Brand Laminate Countertops
    • Shaker Style Cabinet Doors

    Mechanical

    • 50 Gallon Dual Element Water Heater
    • 200 Amp Interior Panel Box
    • •SuperPex Water Supply System
    • •Plumb, Wire and Vent for Washer/Dryer
