TROVE
Cabernet
3 Bed
2 Bath
1,984 Sq. Ft.
64' x 30' 4"

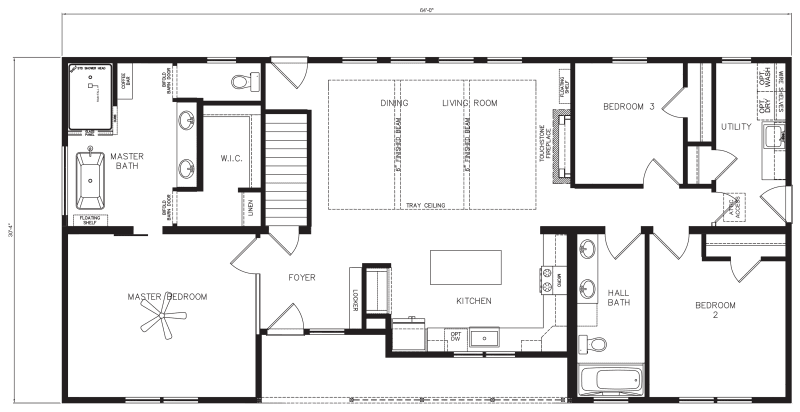

Floor Plan
Virtual Tour

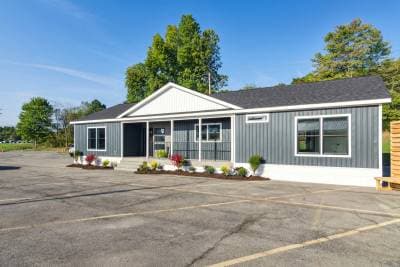

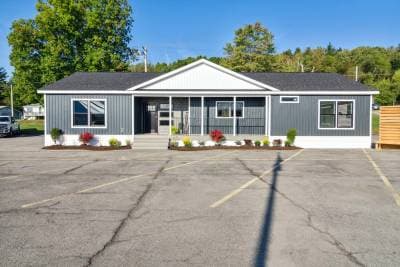

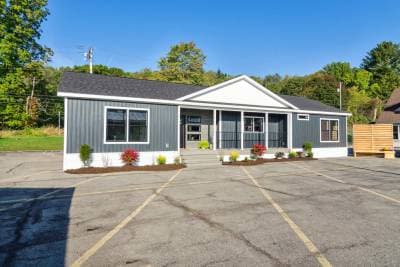

Exterior & Construction
- EXTERIOR & MARRIAGE WALLS
- • 2x6 Exterior Wall Studs at 16” O.C.
- • 2x4 Mate Wall Studs at 16” O.C. With with Straps
- • R-21 Fiberglass Exterior Wall Insulation
- • Oxboard Exterior Wall Sheathing
- • 8’ Sidewall Height
- • Lifetime Warranted 3800 Series 4/4 Vinyl Siding with
- Matching Corners
- • Shutters At Front Elevation (15”X55” & 15”X35” Available)
- • 5/12 Roof Pitch at 24” O.C. For All Ranch
- and 2-Story Models
- • 12/12 Roof Pitch at 24” O.C For All Cape Models
- • Eave Overhangs on All Models
- • 12” Gable Overhangs on All Models
- • R-38 Blown-In Roof Insulation in All Ranch
- and 2-Story Models
- • R-38 Blown-In Roof Insulation in All Cape and Bonus
- Ranch Models Behind Knee-Walls with R-30 Batt
- Under 2nd Floor Decking
- • Top Flips Are Shingled On 12/12 Roof Configurations
- (When Applicable)
- • Architectural Shingles with Synthetic Underlayment
- • Ice and Water Shield at Eaves and Valleys
- • Shingle Over Ridge Vent with Filter Core
- • 7/16” OSB Roof Sheathing with “H” Clips
- • 2x10 Floor Joists at 16” O.C. with Dimensional Lumber
- Marriage Wall Rails and Solid 2x10 Bridging
- • 3/4” Tongue & Groove OSB Floor Decking,
- Glued and Nailed
- • Mohawk® 18oz. Tweed Carpet with Standard Pad and
- Tack Strip in Living Areas, Bedrooms, Stairs, Hallways,
- and Dining Areas (When Applicable)
- • Vinyl Flooring in Kitchen, Baths, Utility and Foyer Areas
- • 6-Panel 3/0 Fiberglass Door with Rot Resistant Jamb and
- Brushed Nickel Knob and Deadbolt – Front and Rear Door
- • Kinro All Vinyl Low-E Single-Hung Windows with Grids
- and Screens
- • All 12/12 Roof Configurations Include One Window for
- Each Gable End Panel
- • Clear Kinro All Vinyl 6/0 x 6/8 Low-E Slider with Screen
- (If Shown on Plan)
- EXTERIOR & MARRIAGE WALLS
- • 2x6 Exterior Wall Studs at 16” O.C.
- • 2x4 Mate Wall Studs at 16” O.C. With with Straps
- • R-21 Fiberglass Exterior Wall Insulation
- • Oxboard Exterior Wall Sheathing
- • 8’ Sidewall Height
- • Lifetime Warranted 3800 Series 4/4 Vinyl Siding with
- Matching Corners
- • Shutters At Front Elevation (15”X55” & 15”X35” Available)
- • 5/12 Roof Pitch at 24” O.C. For All Ranch
- and 2-Story Models
- • 12/12 Roof Pitch at 24” O.C For All Cape Models
- • Eave Overhangs on All Models
- • 12” Gable Overhangs on All Models
- • R-38 Blown-In Roof Insulation in All Ranch
- and 2-Story Models
- • R-38 Blown-In Roof Insulation in All Cape and Bonus
- Ranch Models Behind Knee-Walls with R-30 Batt
- Under 2nd Floor Decking
- • Top Flips Are Shingled On 12/12 Roof Configurations
- (When Applicable)
- • Architectural Shingles with Synthetic Underlayment
- • Ice and Water Shield at Eaves and Valleys
- • Shingle Over Ridge Vent with Filter Core
- • 7/16” OSB Roof Sheathing with “H” Clips
- • 2x10 Floor Joists at 16” O.C. with Dimensional Lumber
- Marriage Wall Rails and Solid 2x10 Bridging
- • 3/4” Tongue & Groove OSB Floor Decking,
- Glued and Nailed
- • Mohawk® 18oz. Tweed Carpet with Standard Pad and
- Tack Strip in Living Areas, Bedrooms, Stairs, Hallways,
- and Dining Areas (When Applicable)
- • Vinyl Flooring in Kitchen, Baths, Utility and Foyer Areas
- • 6-Panel 3/0 Fiberglass Door with Rot Resistant Jamb and
- Brushed Nickel Knob and Deadbolt – Front and Rear Door
- • Kinro All Vinyl Low-E Single-Hung Windows with Grids
- and Screens
- • All 12/12 Roof Configurations Include One Window for
- Each Gable End Panel
- • Clear Kinro All Vinyl 6/0 x 6/8 Low-E Slider with Screen
- (If Shown on Plan)

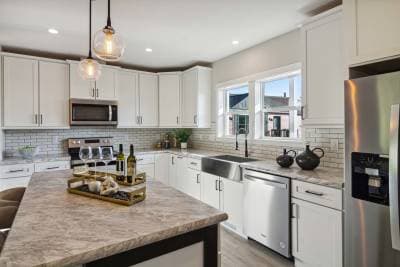

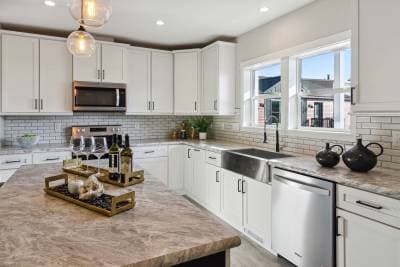

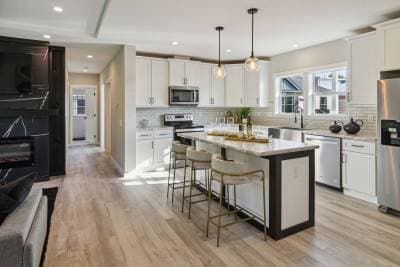

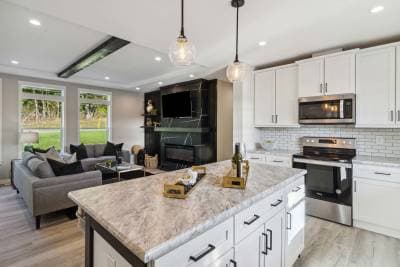

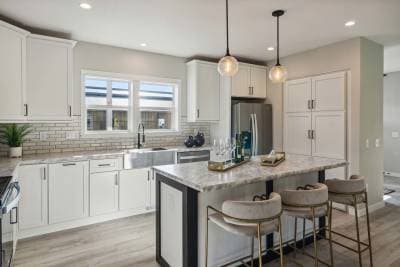

Kitchen
- • Stained Oak Full Overlay Frame and Panel Cabinets
- • Hardwood Cabinet Stiles and Rails
- • Concealed Cabinet Hinges and Full-Extension Drawer
- Glides Throughout
- • Dovetail Drawer Boxes
- • Adjustable Shelves in Wall Cabinets
- • Tilt-Out Sink Trays at All Sink Base Cabinets
- (Where Applicable)
- • Square Brushed Nickel Cabinet Pull Hardware
- • Drawer over Door Base Cabinet Design
- • 2 ½” Oak Crown Molding at Cabinets
- • Wilsonart Crescent Edge Laminate Countertops with
- One Row Dry Stacked Tile
- • Broan® Range Hoods Vented to Exterior
- (Where Applicable)
- • Chrome Single-Lever Faucet with Sprayer
- • 8” Deep Double-Bowl Stainless Steel Sink
- • Stained Oak Full Overlay Frame and Panel Cabinets
- • Hardwood Cabinet Stiles and Rails
- • Concealed Cabinet Hinges and Full-Extension Drawer
- Glides Throughout
- • Dovetail Drawer Boxes
- • Adjustable Shelves in Wall Cabinets
- • Tilt-Out Sink Trays at All Sink Base Cabinets
- (Where Applicable)
- • Square Brushed Nickel Cabinet Pull Hardware
- • Drawer over Door Base Cabinet Design
- • 2 ½” Oak Crown Molding at Cabinets
- • Wilsonart Crescent Edge Laminate Countertops with
- One Row Dry Stacked Tile
- • Broan® Range Hoods Vented to Exterior
- (Where Applicable)
- • Chrome Single-Lever Faucet with Sprayer
- • 8” Deep Double-Bowl Stainless Steel Sink

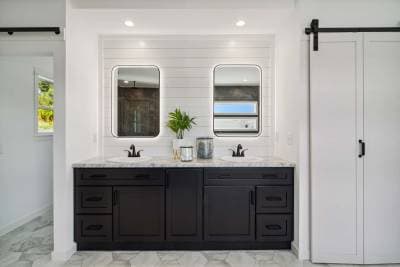

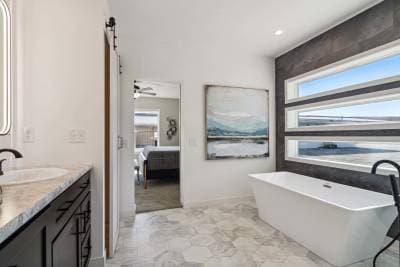

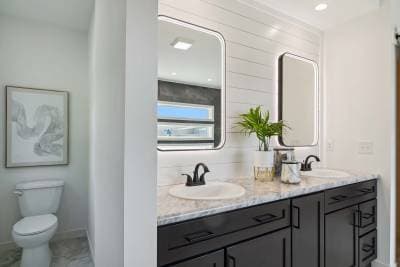

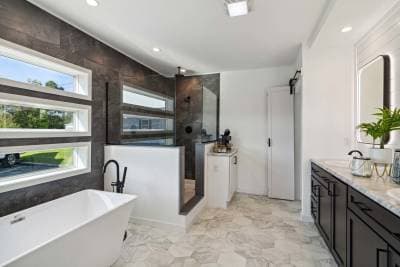

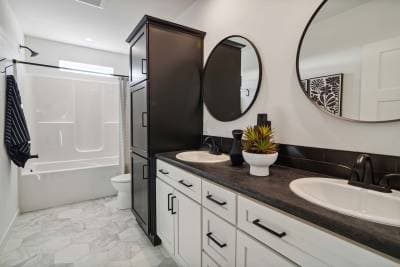

Bathroom
- • 34” High Stained Oak Full Overlay Frame
- and Panel Cabinets
- • Wilsonart® Crescent Edge Laminate Vanity Tops
- with One Row Dry Stacked Tile
- • China Drop in Lavatory Bowls
- • Single-Lever Chrome Lavatory Faucets
- • Beveled Edge Mirror with (1) Recessed Light Over Each
- Bowl (24” For Vanity Cabinets 36” and less //36” For
- Vanity Cabinets Larger Than 36”)
- • Trimmed 60” One-Piece Tub/Shower Units with
- Pressure Sensitive Heat Diverter
- • Elongated Commode
- • Whole-House Fan Located in Hall Bath
- • Bath Fan/Light Combination Switched Separately
- in All Other Bathrooms
- • 34” High Stained Oak Full Overlay Frame
- and Panel Cabinets
- • Wilsonart® Crescent Edge Laminate Vanity Tops
- with One Row Dry Stacked Tile
- • China Drop in Lavatory Bowls
- • Single-Lever Chrome Lavatory Faucets
- • Beveled Edge Mirror with (1) Recessed Light Over Each
- Bowl (24” For Vanity Cabinets 36” and less //36” For
- Vanity Cabinets Larger Than 36”)
- • Trimmed 60” One-Piece Tub/Shower Units with
- Pressure Sensitive Heat Diverter
- • Elongated Commode
- • Whole-House Fan Located in Hall Bath
- • Bath Fan/Light Combination Switched Separately
- in All Other Bathrooms

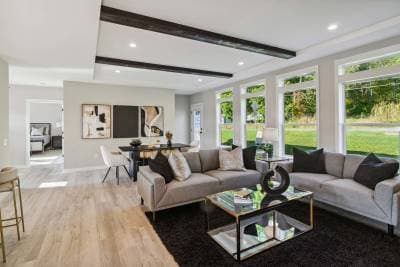

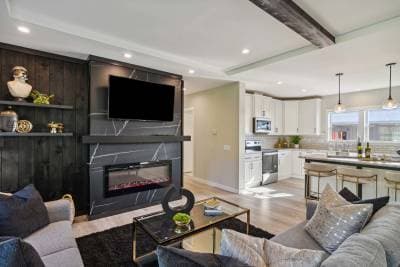

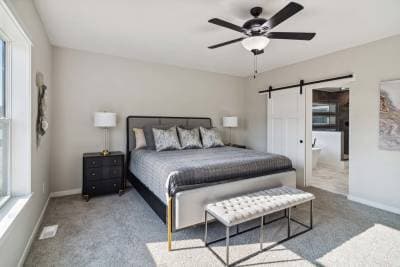

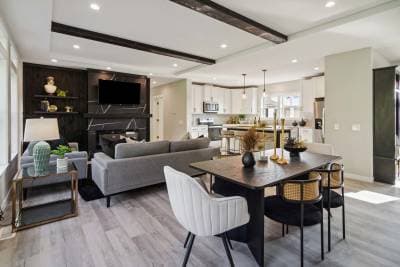

Interior
- INTERIOR WALLS & CEILINGS
- • 2x4 Interior Wall Studs at 24” O.C.
- • 8’ Flat Ceilings Throughout with Smooth Finished Drywall
- • Smooth Finished ½” Drywall, Glued and Screwed
- on All Walls
- • All Walls and Ceilings Finished with (2) Coats of
- White Vapor Barrier Primer Paint
- • Carpet Grade Stairs (Where Applicable)
- INTERIOR DOORS & MOLDINGS
- • 2-Panel White Smooth Interior Doors with Brushed
- Nickel Knob Hardware And (3) Door Hinges
- • White Door Jambs and Stops
- • Arts And Crafts White Casing
- • Arts And Crafts White Base Molding
- • Windows Include Painted White Wood Windowsills
- • All Dropped Headers Will Be Drywall Wrapped
- INTERIOR WALLS & CEILINGS
- • 2x4 Interior Wall Studs at 24” O.C.
- • 8’ Flat Ceilings Throughout with Smooth Finished Drywall
- • Smooth Finished ½” Drywall, Glued and Screwed
- on All Walls
- • All Walls and Ceilings Finished with (2) Coats of
- White Vapor Barrier Primer Paint
- • Carpet Grade Stairs (Where Applicable)
- INTERIOR DOORS & MOLDINGS
- • 2-Panel White Smooth Interior Doors with Brushed
- Nickel Knob Hardware And (3) Door Hinges
- • White Door Jambs and Stops
- • Arts And Crafts White Casing
- • Arts And Crafts White Base Molding
- • Windows Include Painted White Wood Windowsills
- • All Dropped Headers Will Be Drywall Wrapped
Images of homes are solely for illustrative purposes and should not be relied upon. Images may not accurately represent the actual condition of a home as constructed, and may contain options which are not standard on all homes.
Cabernet
3 bedrooms (sleeps 3-6)
2 full bathrooms
1,984 sq. ft.
64' x 30' 4"
Cabernet
3 bedrooms (sleeps 3-6)
2 full bathrooms
1,984 sq. ft.
64' x 30' 4"
Edge Series standard features
Exterior
- EXTERIOR & MARRIAGE WALLS
- • 2x6 Exterior Wall Studs at 16” O.C.
- • 2x4 Mate Wall Studs at 16” O.C. With with Straps
- • R-21 Fiberglass Exterior Wall Insulation
- • Oxboard Exterior Wall Sheathing
- • 8’ Sidewall Height
- • Lifetime Warranted 3800 Series 4/4 Vinyl Siding with
- Matching Corners
- • Shutters At Front Elevation (15”X55” & 15”X35” Available)
- • 5/12 Roof Pitch at 24” O.C. For All Ranch
- and 2-Story Models
- • 12/12 Roof Pitch at 24” O.C For All Cape Models
- • Eave Overhangs on All Models
- • 12” Gable Overhangs on All Models
- • R-38 Blown-In Roof Insulation in All Ranch
- and 2-Story Models
- • R-38 Blown-In Roof Insulation in All Cape and Bonus
- Ranch Models Behind Knee-Walls with R-30 Batt
- Under 2nd Floor Decking
- • Top Flips Are Shingled On 12/12 Roof Configurations
- (When Applicable)
- • Architectural Shingles with Synthetic Underlayment
- • Ice and Water Shield at Eaves and Valleys
- • Shingle Over Ridge Vent with Filter Core
- • 7/16” OSB Roof Sheathing with “H” Clips
- • 2x10 Floor Joists at 16” O.C. with Dimensional Lumber
- Marriage Wall Rails and Solid 2x10 Bridging
- • 3/4” Tongue & Groove OSB Floor Decking,
- Glued and Nailed
- • Mohawk® 18oz. Tweed Carpet with Standard Pad and
- Tack Strip in Living Areas, Bedrooms, Stairs, Hallways,
- and Dining Areas (When Applicable)
- • Vinyl Flooring in Kitchen, Baths, Utility and Foyer Areas
- • 6-Panel 3/0 Fiberglass Door with Rot Resistant Jamb and
- Brushed Nickel Knob and Deadbolt – Front and Rear Door
- • Kinro All Vinyl Low-E Single-Hung Windows with Grids
- and Screens
- • All 12/12 Roof Configurations Include One Window for
- Each Gable End Panel
- • Clear Kinro All Vinyl 6/0 x 6/8 Low-E Slider with Screen
- (If Shown on Plan)
- EXTERIOR & MARRIAGE WALLS
- • 2x6 Exterior Wall Studs at 16” O.C.
- • 2x4 Mate Wall Studs at 16” O.C. With with Straps
- • R-21 Fiberglass Exterior Wall Insulation
- • Oxboard Exterior Wall Sheathing
- • 8’ Sidewall Height
- • Lifetime Warranted 3800 Series 4/4 Vinyl Siding with
- Matching Corners
- • Shutters At Front Elevation (15”X55” & 15”X35” Available)
- • 5/12 Roof Pitch at 24” O.C. For All Ranch
- and 2-Story Models
- • 12/12 Roof Pitch at 24” O.C For All Cape Models
- • Eave Overhangs on All Models
- • 12” Gable Overhangs on All Models
- • R-38 Blown-In Roof Insulation in All Ranch
- and 2-Story Models
- • R-38 Blown-In Roof Insulation in All Cape and Bonus
- Ranch Models Behind Knee-Walls with R-30 Batt
- Under 2nd Floor Decking
- • Top Flips Are Shingled On 12/12 Roof Configurations
- (When Applicable)
- • Architectural Shingles with Synthetic Underlayment
- • Ice and Water Shield at Eaves and Valleys
- • Shingle Over Ridge Vent with Filter Core
- • 7/16” OSB Roof Sheathing with “H” Clips
- • 2x10 Floor Joists at 16” O.C. with Dimensional Lumber
- Marriage Wall Rails and Solid 2x10 Bridging
- • 3/4” Tongue & Groove OSB Floor Decking,
- Glued and Nailed
- • Mohawk® 18oz. Tweed Carpet with Standard Pad and
- Tack Strip in Living Areas, Bedrooms, Stairs, Hallways,
- and Dining Areas (When Applicable)
- • Vinyl Flooring in Kitchen, Baths, Utility and Foyer Areas
- • 6-Panel 3/0 Fiberglass Door with Rot Resistant Jamb and
- Brushed Nickel Knob and Deadbolt – Front and Rear Door
- • Kinro All Vinyl Low-E Single-Hung Windows with Grids
- and Screens
- • All 12/12 Roof Configurations Include One Window for
- Each Gable End Panel
- • Clear Kinro All Vinyl 6/0 x 6/8 Low-E Slider with Screen
- (If Shown on Plan)
Mechanical
- ELECTRICAL
- • 200 Amp 40-Space Service Panel
- • Brushed Nickel Ceiling Light Package Including Bedroom
- Ceiling Lights
- • (4) LED Recessed Lights in Dining Room
- • (1) LED Recessed Light Over Tub/Shower in Hall Bathroom
- • Exterior Light at Each Door
- • AC/DC Smoke Detectors (Per Code)
- • (1) CO Detector
- • Toggle Switches and Duplex Receptacles
- • GFI Receptacles (Per Code)
- • (2) Outside GFI Receptacles (One at Front and One at Rear)
- • Dryer Receptacle and Vent are Optional
- • (2) Electrical Circuits are Standard in 7/12 Storage,
- and 12/12 Cape Attic Space
- HEATING & PLUMBING
- • Boots / Registers Stubbed
- • Other Heating Systems are Optional
- • PEX Supply Lines Stubbed Through Floor
- • PVC Schedule 40 Waste and Drain Lines
- Stubbed Through Floor
- • Individual Shut-Off Valves Throughout
- • Clothes Washer Plumbing is Optional
- • 12/12 Capes are Standard with (1) Hot Water
- Line / (1) Cold Water Line / (1) 3” Drain
- ELECTRICAL
- • 200 Amp 40-Space Service Panel
- • Brushed Nickel Ceiling Light Package Including Bedroom
- Ceiling Lights
- • (4) LED Recessed Lights in Dining Room
- • (1) LED Recessed Light Over Tub/Shower in Hall Bathroom
- • Exterior Light at Each Door
- • AC/DC Smoke Detectors (Per Code)
- • (1) CO Detector
- • Toggle Switches and Duplex Receptacles
- • GFI Receptacles (Per Code)
- • (2) Outside GFI Receptacles (One at Front and One at Rear)
- • Dryer Receptacle and Vent are Optional
- • (2) Electrical Circuits are Standard in 7/12 Storage,
- and 12/12 Cape Attic Space
- HEATING & PLUMBING
- • Boots / Registers Stubbed
- • Other Heating Systems are Optional
- • PEX Supply Lines Stubbed Through Floor
- • PVC Schedule 40 Waste and Drain Lines
- Stubbed Through Floor
- • Individual Shut-Off Valves Throughout
- • Clothes Washer Plumbing is Optional
- • 12/12 Capes are Standard with (1) Hot Water
- Line / (1) Cold Water Line / (1) 3” Drain
Interior
- INTERIOR WALLS & CEILINGS
- • 2x4 Interior Wall Studs at 24” O.C.
- • 8’ Flat Ceilings Throughout with Smooth Finished Drywall
- • Smooth Finished ½” Drywall, Glued and Screwed
- on All Walls
- • All Walls and Ceilings Finished with (2) Coats of
- White Vapor Barrier Primer Paint
- • Carpet Grade Stairs (Where Applicable)
- INTERIOR DOORS & MOLDINGS
- • 2-Panel White Smooth Interior Doors with Brushed
- Nickel Knob Hardware And (3) Door Hinges
- • White Door Jambs and Stops
- • Arts And Crafts White Casing
- • Arts And Crafts White Base Molding
- • Windows Include Painted White Wood Windowsills
- • All Dropped Headers Will Be Drywall Wrapped
- INTERIOR WALLS & CEILINGS
- • 2x4 Interior Wall Studs at 24” O.C.
- • 8’ Flat Ceilings Throughout with Smooth Finished Drywall
- • Smooth Finished ½” Drywall, Glued and Screwed
- on All Walls
- • All Walls and Ceilings Finished with (2) Coats of
- White Vapor Barrier Primer Paint
- • Carpet Grade Stairs (Where Applicable)
- INTERIOR DOORS & MOLDINGS
- • 2-Panel White Smooth Interior Doors with Brushed
- Nickel Knob Hardware And (3) Door Hinges
- • White Door Jambs and Stops
- • Arts And Crafts White Casing
- • Arts And Crafts White Base Molding
- • Windows Include Painted White Wood Windowsills
- • All Dropped Headers Will Be Drywall Wrapped
Kitchen
- • Stained Oak Full Overlay Frame and Panel Cabinets
- • Hardwood Cabinet Stiles and Rails
- • Concealed Cabinet Hinges and Full-Extension Drawer
- Glides Throughout
- • Dovetail Drawer Boxes
- • Adjustable Shelves in Wall Cabinets
- • Tilt-Out Sink Trays at All Sink Base Cabinets
- (Where Applicable)
- • Square Brushed Nickel Cabinet Pull Hardware
- • Drawer over Door Base Cabinet Design
- • 2 ½” Oak Crown Molding at Cabinets
- • Wilsonart Crescent Edge Laminate Countertops with
- One Row Dry Stacked Tile
- • Broan® Range Hoods Vented to Exterior
- (Where Applicable)
- • Chrome Single-Lever Faucet with Sprayer
- • 8” Deep Double-Bowl Stainless Steel Sink
- • Stained Oak Full Overlay Frame and Panel Cabinets
- • Hardwood Cabinet Stiles and Rails
- • Concealed Cabinet Hinges and Full-Extension Drawer
- Glides Throughout
- • Dovetail Drawer Boxes
- • Adjustable Shelves in Wall Cabinets
- • Tilt-Out Sink Trays at All Sink Base Cabinets
- (Where Applicable)
- • Square Brushed Nickel Cabinet Pull Hardware
- • Drawer over Door Base Cabinet Design
- • 2 ½” Oak Crown Molding at Cabinets
- • Wilsonart Crescent Edge Laminate Countertops with
- One Row Dry Stacked Tile
- • Broan® Range Hoods Vented to Exterior
- (Where Applicable)
- • Chrome Single-Lever Faucet with Sprayer
- • 8” Deep Double-Bowl Stainless Steel Sink
Bathroom
- • 34” High Stained Oak Full Overlay Frame
- and Panel Cabinets
- • Wilsonart® Crescent Edge Laminate Vanity Tops
- with One Row Dry Stacked Tile
- • China Drop in Lavatory Bowls
- • Single-Lever Chrome Lavatory Faucets
- • Beveled Edge Mirror with (1) Recessed Light Over Each
- Bowl (24” For Vanity Cabinets 36” and less //36” For
- Vanity Cabinets Larger Than 36”)
- • Trimmed 60” One-Piece Tub/Shower Units with
- Pressure Sensitive Heat Diverter
- • Elongated Commode
- • Whole-House Fan Located in Hall Bath
- • Bath Fan/Light Combination Switched Separately
- in All Other Bathrooms
- • 34” High Stained Oak Full Overlay Frame
- and Panel Cabinets
- • Wilsonart® Crescent Edge Laminate Vanity Tops
- with One Row Dry Stacked Tile
- • China Drop in Lavatory Bowls
- • Single-Lever Chrome Lavatory Faucets
- • Beveled Edge Mirror with (1) Recessed Light Over Each
- Bowl (24” For Vanity Cabinets 36” and less //36” For
- Vanity Cabinets Larger Than 36”)
- • Trimmed 60” One-Piece Tub/Shower Units with
- Pressure Sensitive Heat Diverter
- • Elongated Commode
- • Whole-House Fan Located in Hall Bath
- • Bath Fan/Light Combination Switched Separately
- in All Other Bathrooms
Other
- • Ten (10) Year Major Structural Defect Protection
- (Valid Only If Homeowner Is Registered Within 60
- Days of Retail Delivery)
- • Two (2) Year Warranty on Portions of Heating and
- Electrical Systems
- • One (1) Year Limited Product Warranty
- • Individual Product Warranties Provided by Product
- Manufacturers Direct to Retail Consumer
- • Ten (10) Year Major Structural Defect Protection
- (Valid Only If Homeowner Is Registered Within 60
- Days of Retail Delivery)
- • Two (2) Year Warranty on Portions of Heating and
- Electrical Systems
- • One (1) Year Limited Product Warranty
- • Individual Product Warranties Provided by Product
- Manufacturers Direct to Retail Consumer
Pages
Get started with Trove
Bolster your sales & product team with Trove
Dealer License #:
