Edge LE210

3 Bed

2.5 Bath

1,870 Sq. Ft.

34' x 27' 6"

3 Bed

2.5 Bath

1,870 Sq. Ft.

34' x 27' 6"

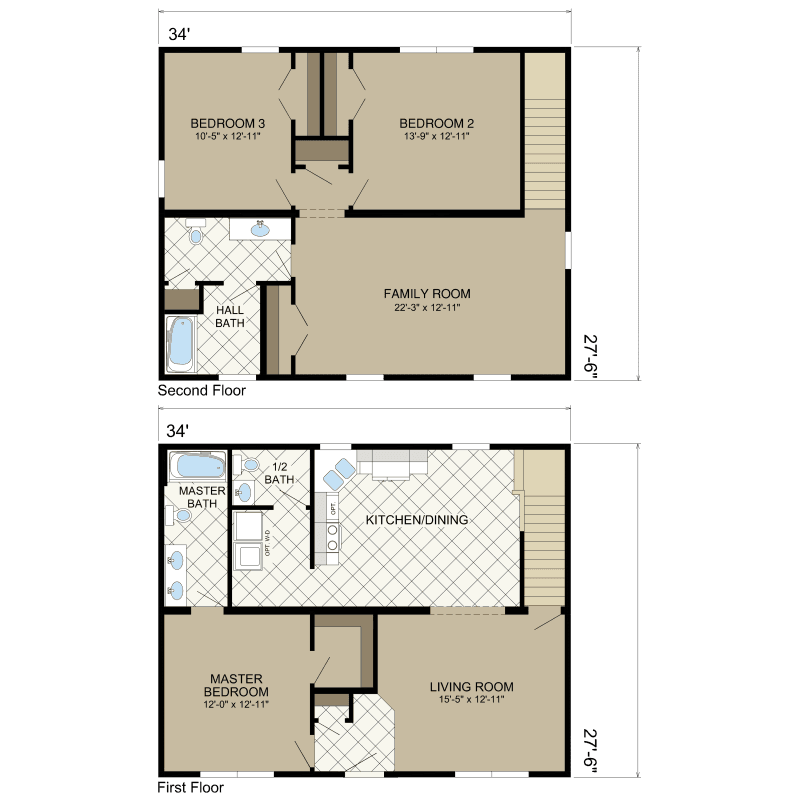

Floor Plan

Exterior & Construction

EXTERIOR & MARRIAGE WALLS
• 2x6 Exterior Wall Studs at 16” O.C.
• 2x4 Mate Wall Studs at 16” O.C. With with Straps
• R-21 Fiberglass Exterior Wall Insulation
• Oxboard Exterior Wall Sheathing
• 8’ Sidewall Height
• Lifetime Warranted 3800 Series 4/4 Vinyl Siding with
Matching Corners
• Shutters At Front Elevation (15”X55” & 15”X35” Available)
• 5/12 Roof Pitch at 24” O.C. For All Ranch
and 2-Story Models
• 12/12 Roof Pitch at 24” O.C For All Cape Models
• Eave Overhangs on All Models
• 12” Gable Overhangs on All Models
• R-38 Blown-In Roof Insulation in All Ranch
and 2-Story Models
• R-38 Blown-In Roof Insulation in All Cape and Bonus
Ranch Models Behind Knee-Walls with R-30 Batt
Under 2nd Floor Decking
• Top Flips Are Shingled On 12/12 Roof Configurations
(When Applicable)
• Architectural Shingles with Synthetic Underlayment
• Ice and Water Shield at Eaves and Valleys
• Shingle Over Ridge Vent with Filter Core
• 7/16” OSB Roof Sheathing with “H” Clips
• 2x10 Floor Joists at 16” O.C. with Dimensional Lumber
Marriage Wall Rails and Solid 2x10 Bridging
• 3/4” Tongue & Groove OSB Floor Decking,
Glued and Nailed
• Mohawk® 18oz. Tweed Carpet with Standard Pad and
Tack Strip in Living Areas, Bedrooms, Stairs, Hallways,
and Dining Areas (When Applicable)
• Vinyl Flooring in Kitchen, Baths, Utility and Foyer Areas
• 6-Panel 3/0 Fiberglass Door with Rot Resistant Jamb and
Brushed Nickel Knob and Deadbolt – Front and Rear Door
• Kinro All Vinyl Low-E Single-Hung Windows with Grids
and Screens
• All 12/12 Roof Configurations Include One Window for
Each Gable End Panel
• Clear Kinro All Vinyl 6/0 x 6/8 Low-E Slider with Screen
(If Shown on Plan)

EXTERIOR & MARRIAGE WALLS

• 2x6 Exterior Wall Studs at 16” O.C.

• 2x4 Mate Wall Studs at 16” O.C. With with Straps

• R-21 Fiberglass Exterior Wall Insulation

• Oxboard Exterior Wall Sheathing

• 8’ Sidewall Height

• Lifetime Warranted 3800 Series 4/4 Vinyl Siding with

Matching Corners

• Shutters At Front Elevation (15”X55” & 15”X35” Available)

• 5/12 Roof Pitch at 24” O.C. For All Ranch

and 2-Story Models

• 12/12 Roof Pitch at 24” O.C For All Cape Models

• Eave Overhangs on All Models

• 12” Gable Overhangs on All Models

• R-38 Blown-In Roof Insulation in All Ranch

and 2-Story Models

• R-38 Blown-In Roof Insulation in All Cape and Bonus

Ranch Models Behind Knee-Walls with R-30 Batt

Under 2nd Floor Decking

• Top Flips Are Shingled On 12/12 Roof Configurations

(When Applicable)

• Architectural Shingles with Synthetic Underlayment

• Ice and Water Shield at Eaves and Valleys

• Shingle Over Ridge Vent with Filter Core

• 7/16” OSB Roof Sheathing with “H” Clips

• 2x10 Floor Joists at 16” O.C. with Dimensional Lumber

Marriage Wall Rails and Solid 2x10 Bridging

• 3/4” Tongue & Groove OSB Floor Decking,

Glued and Nailed

• Mohawk® 18oz. Tweed Carpet with Standard Pad and

Tack Strip in Living Areas, Bedrooms, Stairs, Hallways,

and Dining Areas (When Applicable)

• Vinyl Flooring in Kitchen, Baths, Utility and Foyer Areas

• 6-Panel 3/0 Fiberglass Door with Rot Resistant Jamb and

Brushed Nickel Knob and Deadbolt – Front and Rear Door

• Kinro All Vinyl Low-E Single-Hung Windows with Grids

and Screens

• All 12/12 Roof Configurations Include One Window for

Each Gable End Panel

• Clear Kinro All Vinyl 6/0 x 6/8 Low-E Slider with Screen

(If Shown on Plan)

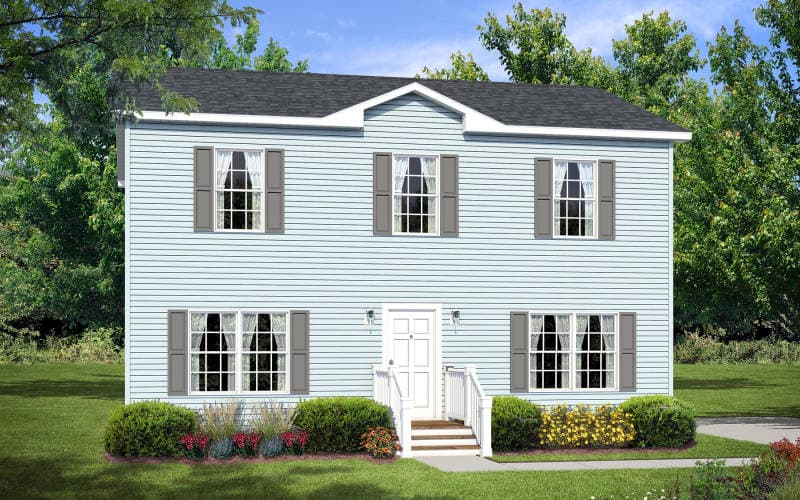

Images of homes are solely for illustrative purposes and should not be relied upon. Images may not accurately represent the actual condition of a home as constructed, and may contain options which are not standard on all homes.

Edge LE210

3 bedrooms (sleeps 3-6)

2 full bathrooms

1 half bathroom

1,870 sq. ft.

34' x 27' 6"

Start your project Design home

Edge Series standard features

Exterior

EXTERIOR & MARRIAGE WALLS
• 2x6 Exterior Wall Studs at 16” O.C.
• 2x4 Mate Wall Studs at 16” O.C. With with Straps
• R-21 Fiberglass Exterior Wall Insulation
• Oxboard Exterior Wall Sheathing
• 8’ Sidewall Height
• Lifetime Warranted 3800 Series 4/4 Vinyl Siding with
Matching Corners
• Shutters At Front Elevation (15”X55” & 15”X35” Available)
• 5/12 Roof Pitch at 24” O.C. For All Ranch
and 2-Story Models
• 12/12 Roof Pitch at 24” O.C For All Cape Models
• Eave Overhangs on All Models
• 12” Gable Overhangs on All Models
• R-38 Blown-In Roof Insulation in All Ranch
and 2-Story Models
• R-38 Blown-In Roof Insulation in All Cape and Bonus
Ranch Models Behind Knee-Walls with R-30 Batt
Under 2nd Floor Decking
• Top Flips Are Shingled On 12/12 Roof Configurations
(When Applicable)
• Architectural Shingles with Synthetic Underlayment
• Ice and Water Shield at Eaves and Valleys
• Shingle Over Ridge Vent with Filter Core
• 7/16” OSB Roof Sheathing with “H” Clips
• 2x10 Floor Joists at 16” O.C. with Dimensional Lumber
Marriage Wall Rails and Solid 2x10 Bridging
• 3/4” Tongue & Groove OSB Floor Decking,
Glued and Nailed
• Mohawk® 18oz. Tweed Carpet with Standard Pad and
Tack Strip in Living Areas, Bedrooms, Stairs, Hallways,
and Dining Areas (When Applicable)
• Vinyl Flooring in Kitchen, Baths, Utility and Foyer Areas
• 6-Panel 3/0 Fiberglass Door with Rot Resistant Jamb and
Brushed Nickel Knob and Deadbolt – Front and Rear Door
• Kinro All Vinyl Low-E Single-Hung Windows with Grids
and Screens
• All 12/12 Roof Configurations Include One Window for
Each Gable End Panel
• Clear Kinro All Vinyl 6/0 x 6/8 Low-E Slider with Screen
(If Shown on Plan)

Mechanical

ELECTRICAL
• 200 Amp 40-Space Service Panel
• Brushed Nickel Ceiling Light Package Including Bedroom
Ceiling Lights
• (4) LED Recessed Lights in Dining Room
• (1) LED Recessed Light Over Tub/Shower in Hall Bathroom
• Exterior Light at Each Door
• AC/DC Smoke Detectors (Per Code)
• (1) CO Detector
• Toggle Switches and Duplex Receptacles
• GFI Receptacles (Per Code)
• (2) Outside GFI Receptacles (One at Front and One at Rear)
• Dryer Receptacle and Vent are Optional
• (2) Electrical Circuits are Standard in 7/12 Storage,
and 12/12 Cape Attic Space
HEATING & PLUMBING
• Boots / Registers Stubbed
• Other Heating Systems are Optional
• PEX Supply Lines Stubbed Through Floor
• PVC Schedule 40 Waste and Drain Lines
Stubbed Through Floor
• Individual Shut-Off Valves Throughout
• Clothes Washer Plumbing is Optional
• 12/12 Capes are Standard with (1) Hot Water
Line / (1) Cold Water Line / (1) 3” Drain

Interior

INTERIOR WALLS & CEILINGS
• 2x4 Interior Wall Studs at 24” O.C.
• 8’ Flat Ceilings Throughout with Smooth Finished Drywall
• Smooth Finished ½” Drywall, Glued and Screwed
on All Walls
• All Walls and Ceilings Finished with (2) Coats of
White Vapor Barrier Primer Paint
• Carpet Grade Stairs (Where Applicable)
INTERIOR DOORS & MOLDINGS
• 2-Panel White Smooth Interior Doors with Brushed
Nickel Knob Hardware And (3) Door Hinges
• White Door Jambs and Stops
• Arts And Crafts White Casing
• Arts And Crafts White Base Molding
• Windows Include Painted White Wood Windowsills
• All Dropped Headers Will Be Drywall Wrapped

Kitchen

• Stained Oak Full Overlay Frame and Panel Cabinets
• Hardwood Cabinet Stiles and Rails
• Concealed Cabinet Hinges and Full-Extension Drawer
Glides Throughout
• Dovetail Drawer Boxes
• Adjustable Shelves in Wall Cabinets
• Tilt-Out Sink Trays at All Sink Base Cabinets
(Where Applicable)
• Square Brushed Nickel Cabinet Pull Hardware
• Drawer over Door Base Cabinet Design
• 2 ½” Oak Crown Molding at Cabinets
• Wilsonart Crescent Edge Laminate Countertops with
One Row Dry Stacked Tile
• Broan® Range Hoods Vented to Exterior
(Where Applicable)
• Chrome Single-Lever Faucet with Sprayer
• 8” Deep Double-Bowl Stainless Steel Sink

Bathroom

• 34” High Stained Oak Full Overlay Frame
and Panel Cabinets
• Wilsonart® Crescent Edge Laminate Vanity Tops
with One Row Dry Stacked Tile
• China Drop in Lavatory Bowls
• Single-Lever Chrome Lavatory Faucets
• Beveled Edge Mirror with (1) Recessed Light Over Each
Bowl (24” For Vanity Cabinets 36” and less //36” For
Vanity Cabinets Larger Than 36”)
• Trimmed 60” One-Piece Tub/Shower Units with
Pressure Sensitive Heat Diverter
• Elongated Commode
• Whole-House Fan Located in Hall Bath
• Bath Fan/Light Combination Switched Separately
in All Other Bathrooms

Other

• Ten (10) Year Major Structural Defect Protection
(Valid Only If Homeowner Is Registered Within 60
Days of Retail Delivery)
• Two (2) Year Warranty on Portions of Heating and
Electrical Systems
• One (1) Year Limited Product Warranty
• Individual Product Warranties Provided by Product
Manufacturers Direct to Retail Consumer
